At Integrity Controls & Instrumentation (ICI) we provide expert risk consulting and safety lifecycle software solutions.
Integrity Virtual Test Suite (VTS)
Integrity VTS is an I/O Simulator used for Tristation 1131 Version 4.x Systems. Integrity VTS connects to the Tristation Emulator via a DDE Connection and has the following capabilities:
- Manual Testing is capable of creating and storing up to 32K configurable manual test screens.
- Manual Testing includes configurable Input Preset used for easy testing for startup and shutdown testing.
- Color scheme can be changed to either (Green = True / Red = False) or (Green = False / Red = True).
- One-Button Click for writing Automated Test Procedures. Automated Scripts can easily be converted to Proof Test Procedures that are guaranteed to work.
- An unlimited number of Test Procedures can be saved and imported for later use. Up to 32K lines per procedure set.
- Automated Test Procedures are easily exported to Triconex Safety Validator. This allows the procedures to be executed directly on the Triconex Main Processors
 |
Integrity Controls and Instrumentation uses VTS to test existing control program for compliance to existing documentation including:
|
| Automated SIS Proof Testing - Introduction I/O simulation and automated testing platform for designed for Triconex TriStation 1131 Installations |
| Automated SIS Proof Testing - Part 1 I/O simulation and automated testing platform for designed for Triconex TriStation 1131 Installations |
| Automated SIS Proof Testing - Part 2 I/O simulation and automated testing platform for designed for Triconex TriStation 1131 Installations |
| Automated SIS Proof Testing - Part 3 I/O simulation and automated testing platform for designed for Triconex TriStation 1131 Installations |
| Automated SIS Proof Testing - Part 4 I/O simulation and automated testing platform for designed for Triconex TriStation 1131 Installations |
| Automated SIS Proof Testing - Part 5 I/O simulation and automated testing platform for designed for Triconex TriStation 1131 Installations |
Integrity Auditor
Integrity Auditor is an audit utility ICI uses for audits pertaining to IEC 61511 (Functional Safety), API (Prescriptive Standard), NFPA (Prescriptive Standard) as well as any Customer Specific guidelines associated with SIS Installations.
 |
Features:
|
 |
Configurable Audit Questionnaire: The audit questionnaire is pre-loaded with standard questions for compliance to IEC 61511. However, the user has the ability to remove and add as many questions has they feel necessary using the Integrity Audit Configuration Menu. |
 |

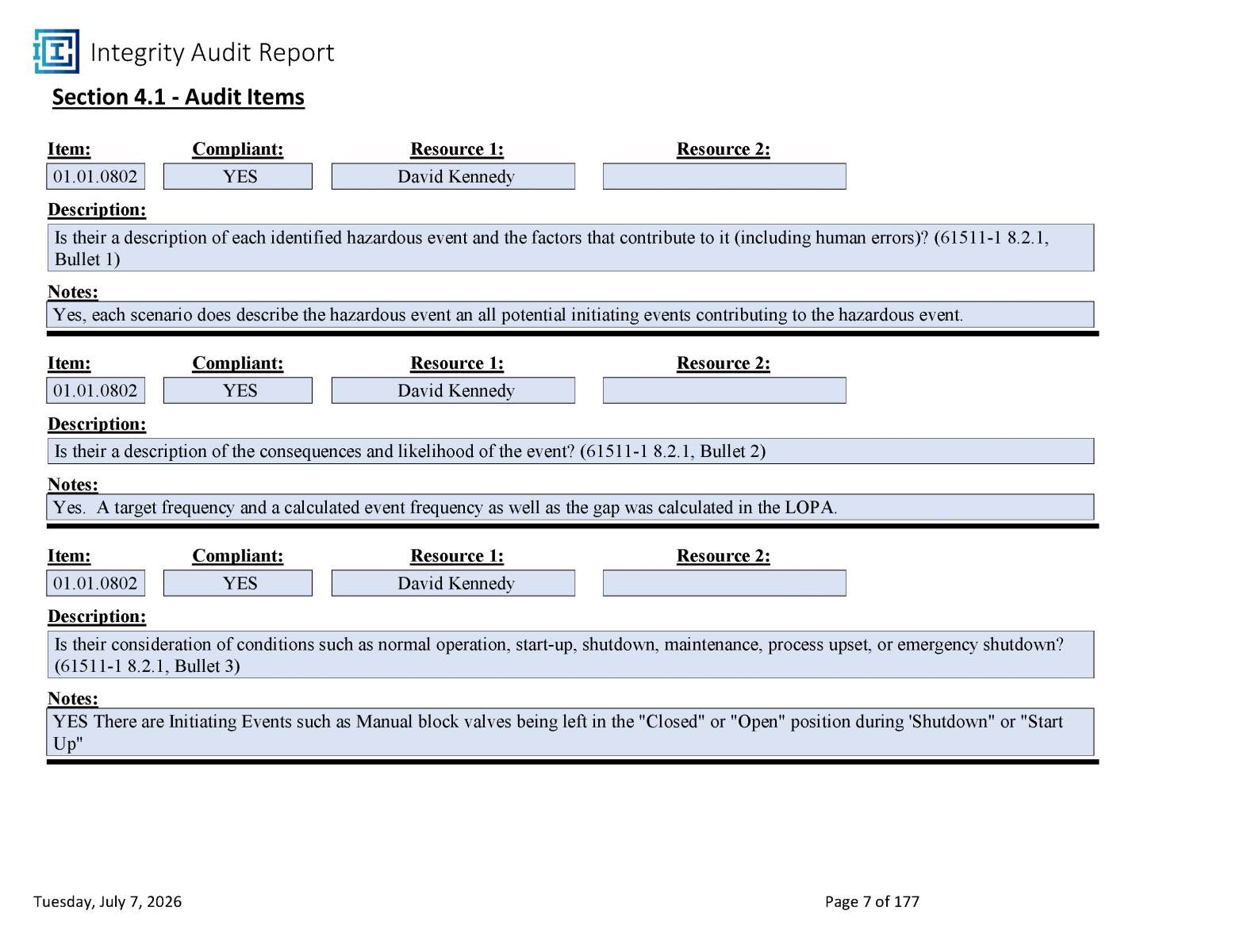

Audit Questionnaire:
|
 |
Action Item List: Action Item list to ensure that all unresolved items are documented. |
 |
Document Index: The document index is capable of storing the Document Name, Type, Description, and hyperlink to over thirty-two thousand (32,000) documents per project. |
 |
Audit Team Resources: Resources can be stored into a table containing Name, Company, Title, Email, Phone, Audit Role, and Resume. |
|

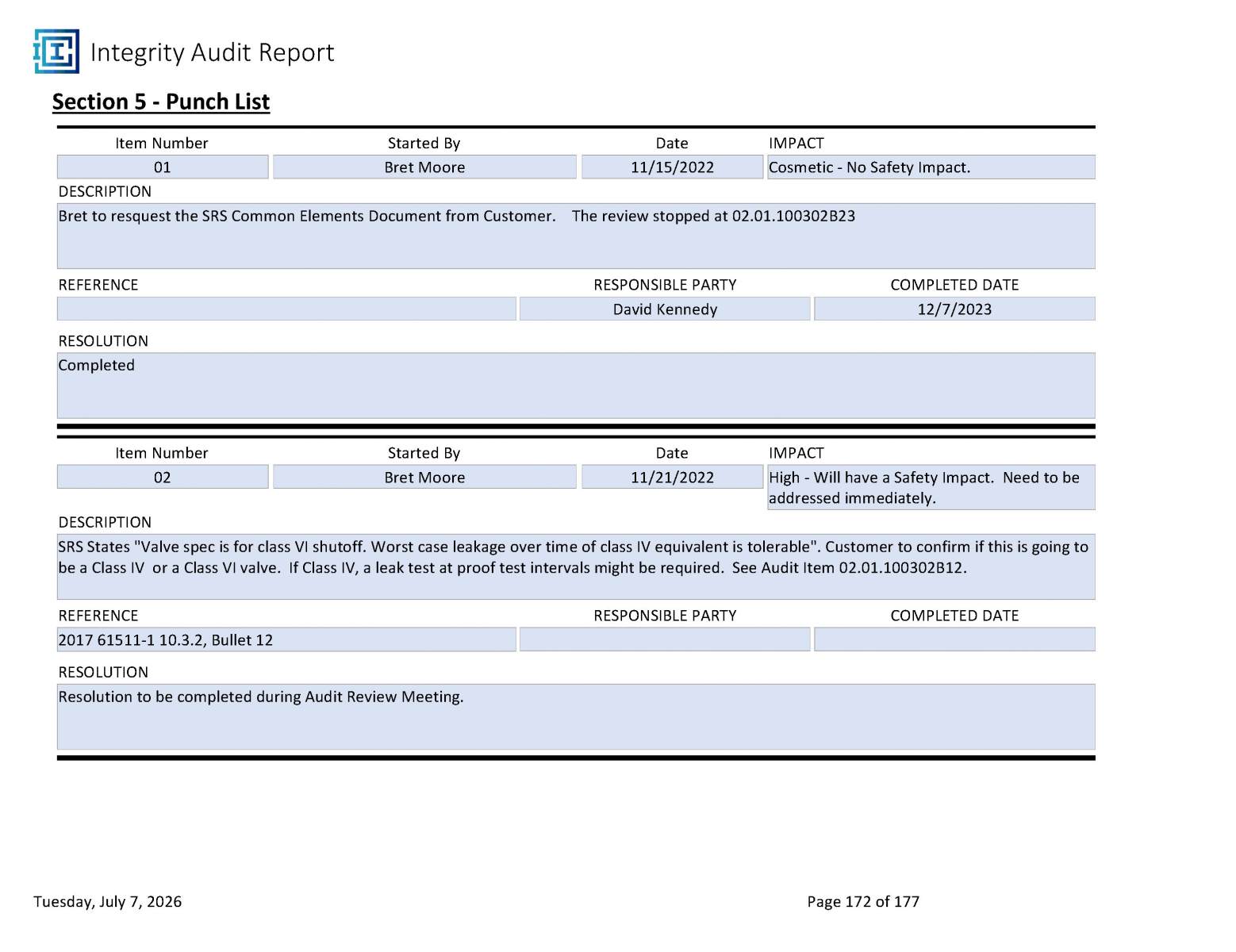

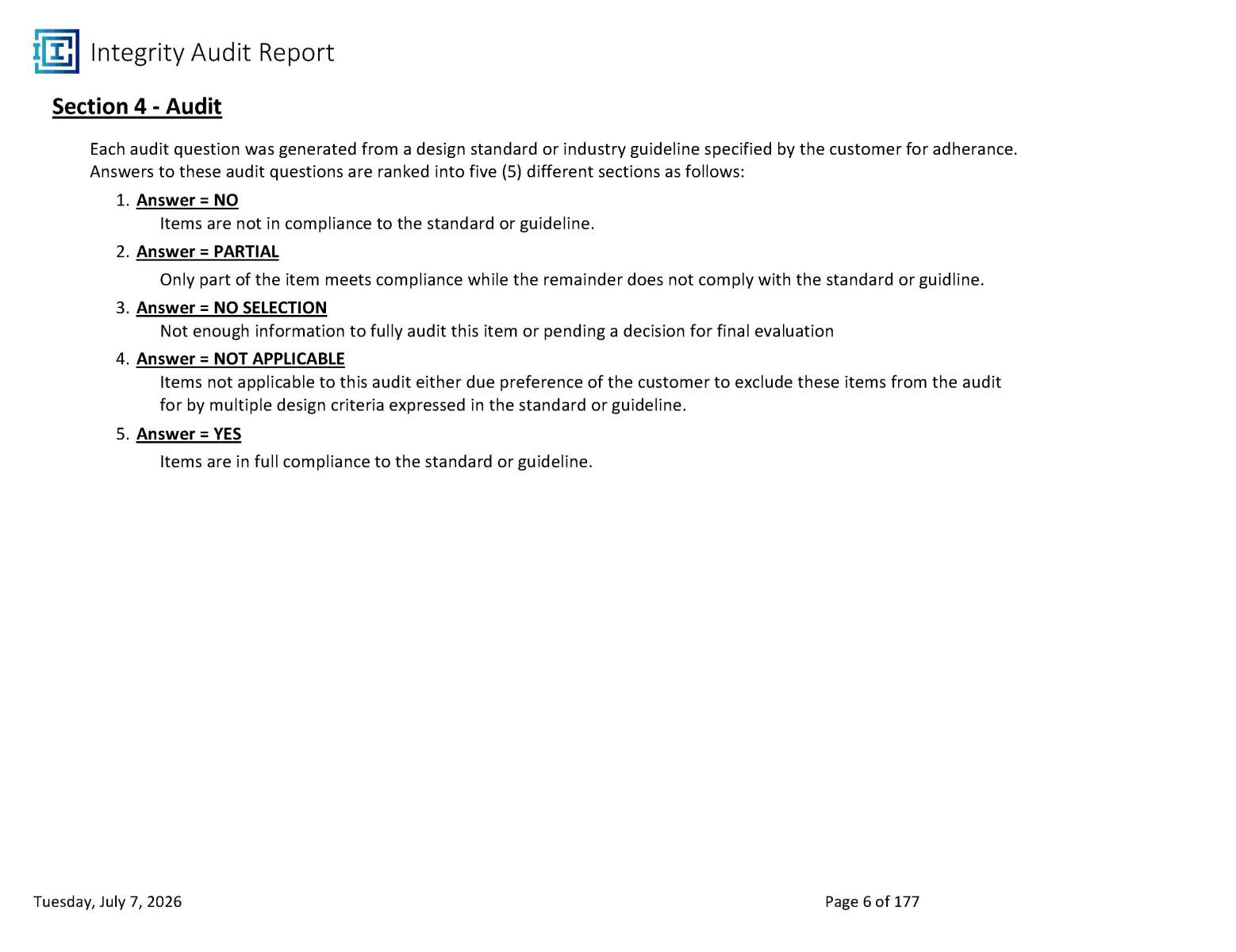

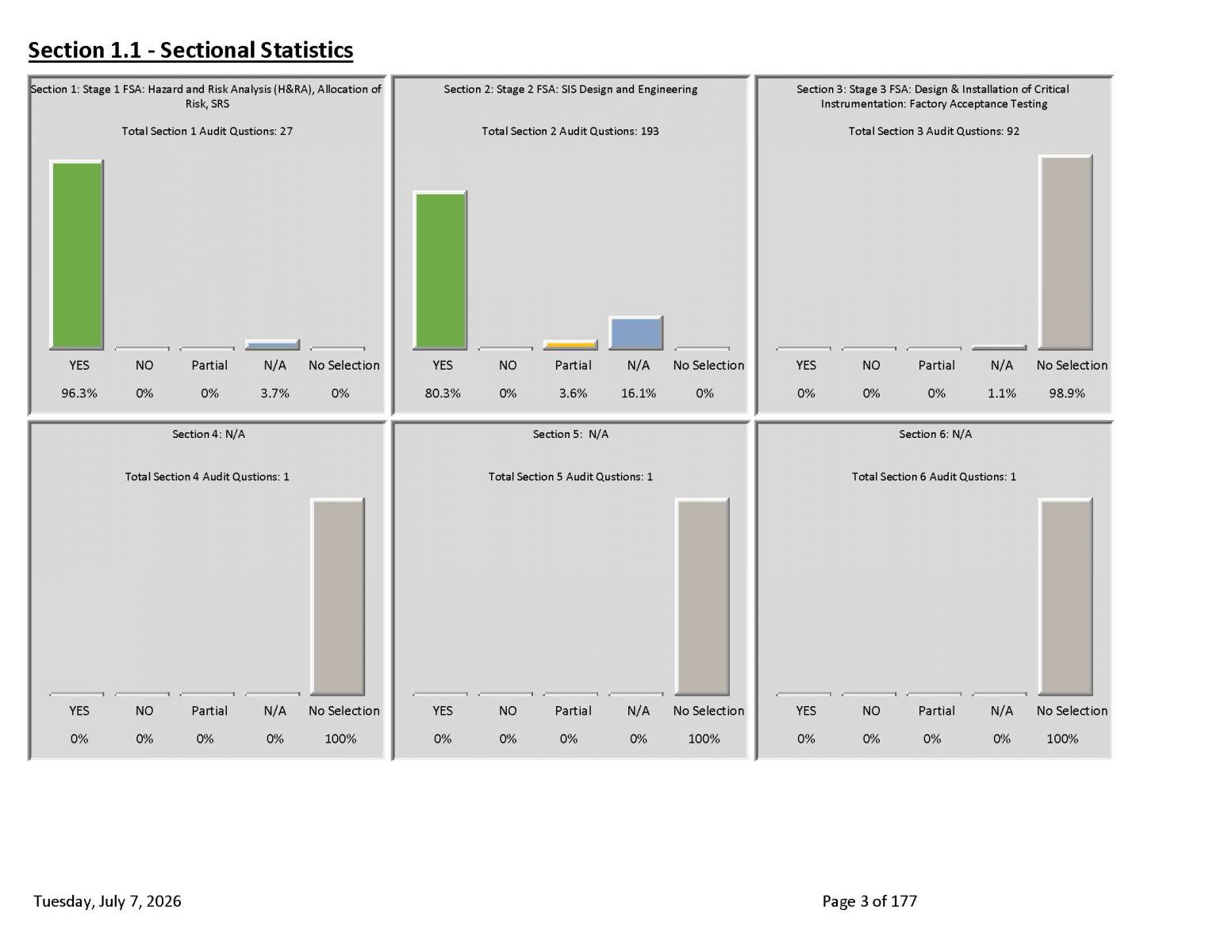

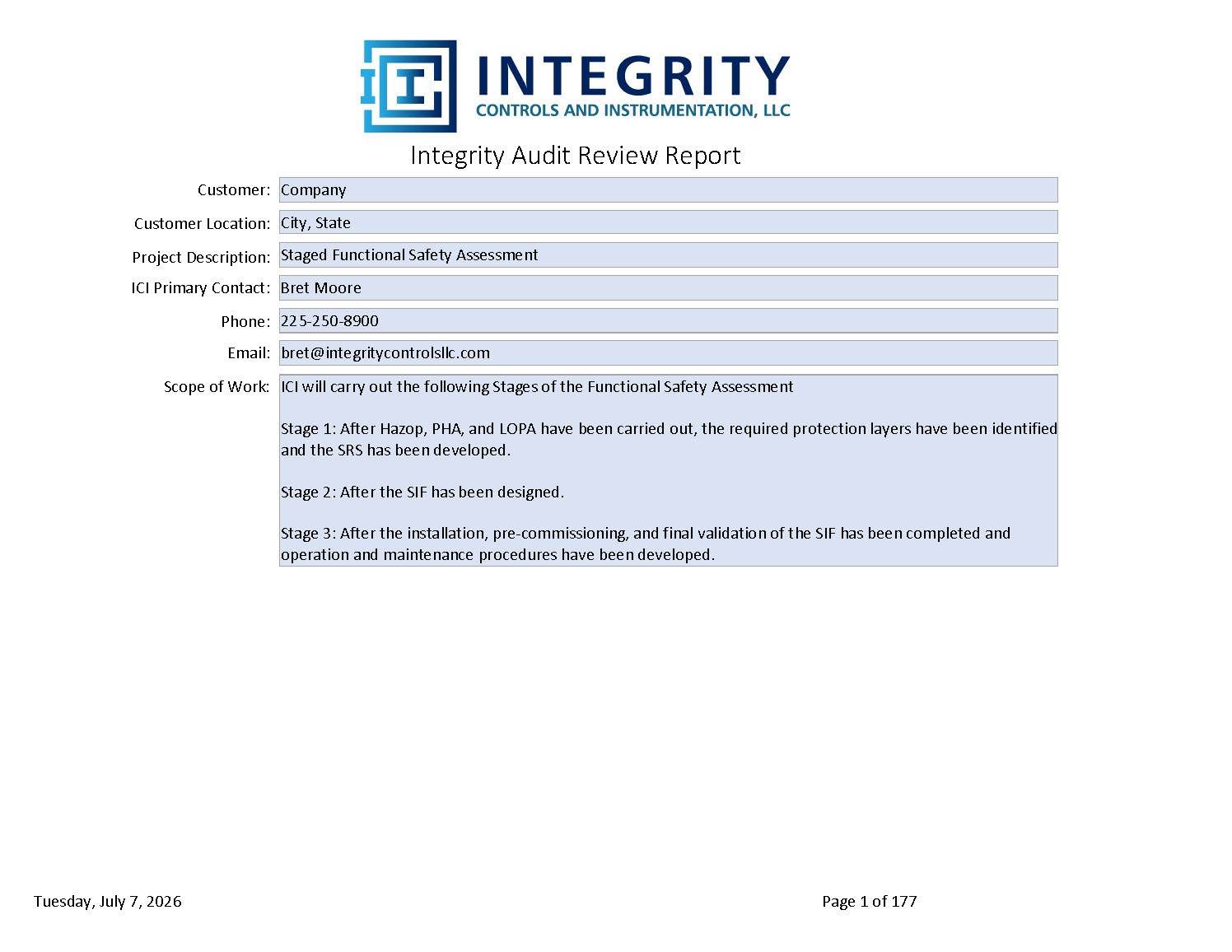

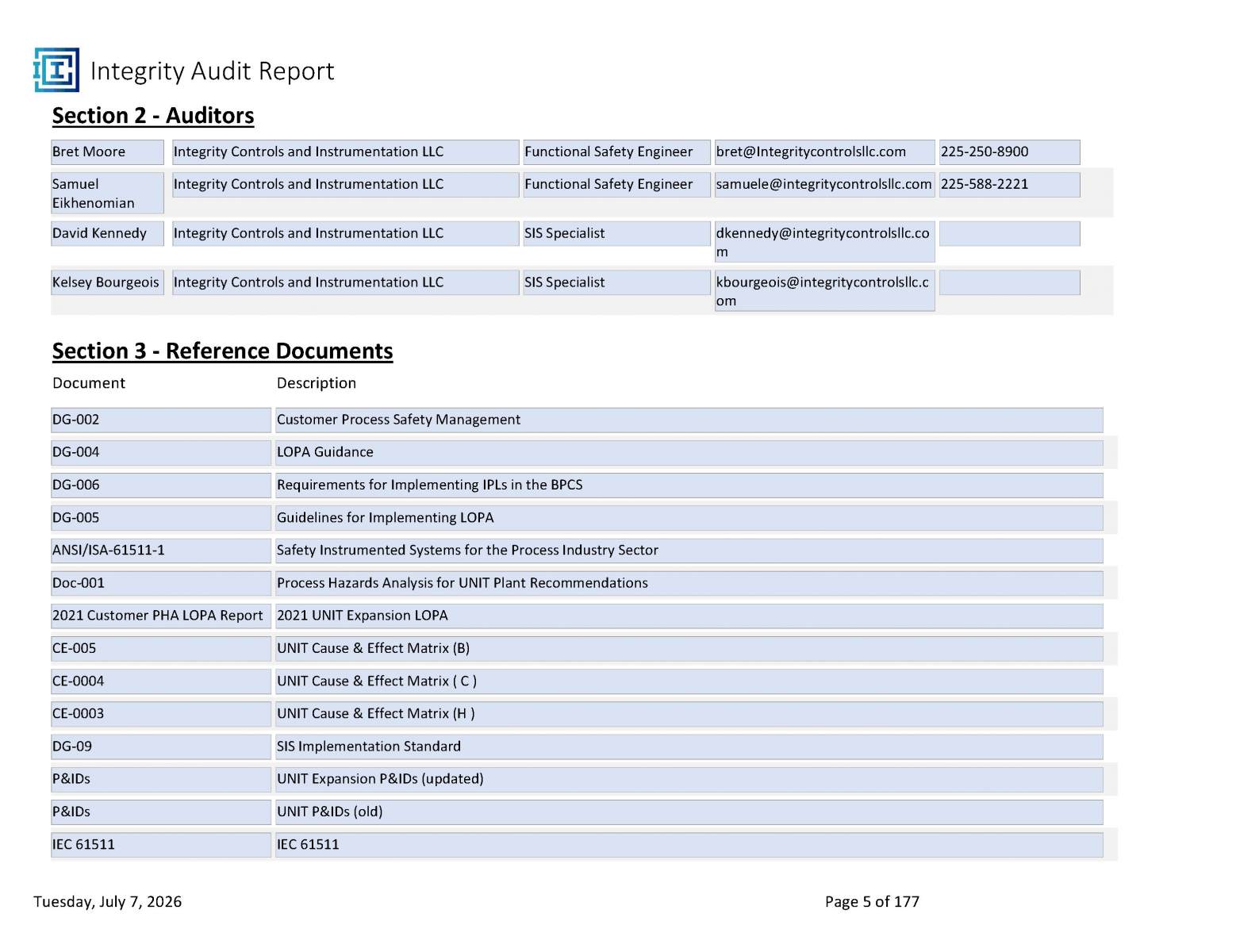

Audit Report:
|
Integrity SIS
Integrity SIS is a Functional Safety Engineering (FSE) tool specifically designed for the Analysis and Design phases of IEC 61511. Most FSE tools in the marketplace are designed to address specific deliverables in the lifecycle. However, Integrity SIS is a comprehensive solution for the SIS Instrument Index, Tag Failure Database, Layers of Protection Analysis, SIL Verification, SRS Common Items, and SRS SIF Specification.
 |
Features:
|
 |
Features:
|
 |
Features:
|
 |
Features:
|
